Pro Stringer

Calibration

Check and correct your machine’s tension with a digital calibrator. Choose your machine for the video and the step-by-step guide.

Calibrate your CybeX

CybeX has a built-in sensor calibration routine. You need a digital tension calibrator and a few minutes.

Calibrating CybeX · 4:47

Before you start: make sure your calibration setup is secure, and follow the instructions on the screen and in the video carefully.

Attach your digital calibrator to the mounting system with a length of the string you normally use, routed as if you were pulling the first main. Turn the calibrator on and zero it.
On the CybeX touchscreen, tap the gear icon, then the double-arrow button to open Settings page 2.
Scroll down to Sensor calibration and touch and hold the Calibration button. The tension calibration screen opens.
Read each step on the screen. At the zero step, touch the button while nothing pulls on the sensor; a beep confirms the sensor is zeroed.
Pull tension against the calibrator. As the string stretches, the calibrator reading slowly drops: press the top button the moment it matches the number on the CybeX screen.
Go back to the home screen and check a few tensions, for example 41, 51 and 61 lb. If the machine and the calibrator do not match, run the calibration again.

Check what your Platinum 3.0 actually pulls with a digital calibrator, then set the tension sticker on the dial to match.

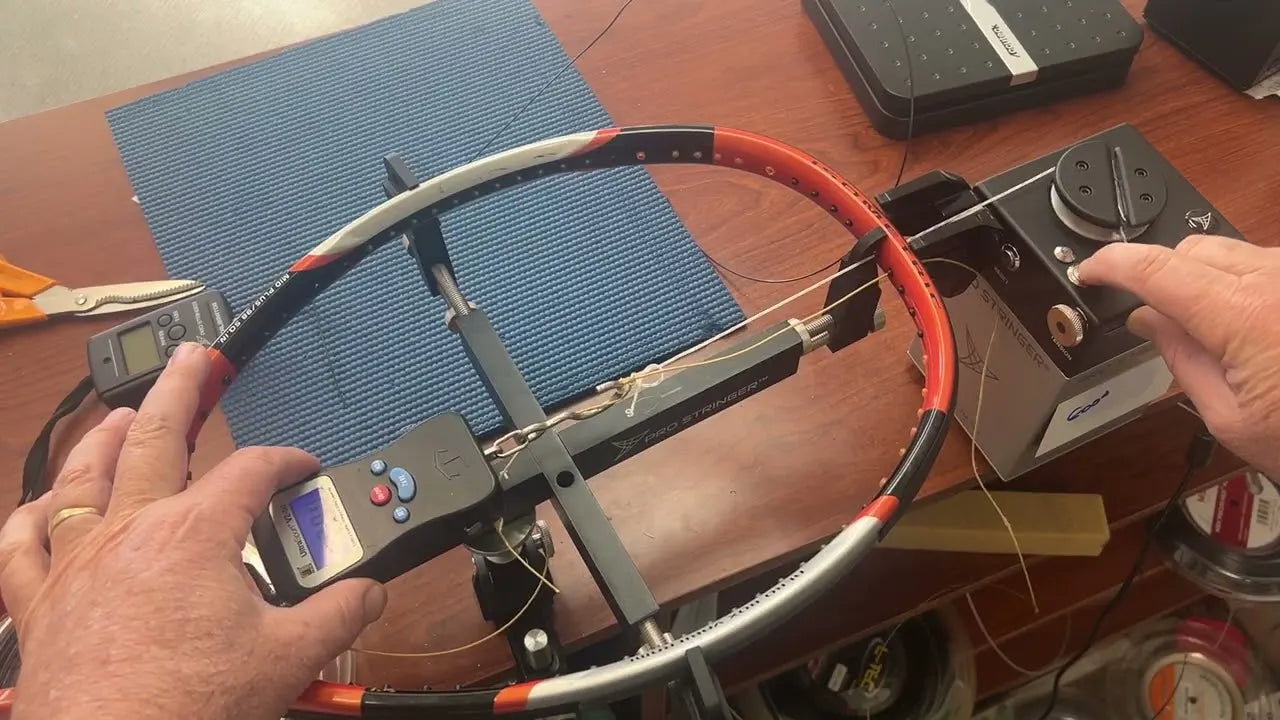

Setting up to check calibration · 2:43

Platinum 3.0 has no calibration menu: you check its pull against a calibrator and set the dial sticker to match.

For the tension dial and the reset button, watch the Tension Adjustment & Reset Button guide in the Platinum Learning Center. Need a calibrator? Pro Stringer Calibrator

Hook the calibrator onto the throat support of your mounting system before you mount the racquet. The Pro Stringer Calibrator attaches with its rope.
Mount the racquet. Tie a piece of the string you normally use to the calibrator hook, long enough to pass through the head as if you were pulling the first main.
Turn the calibrator on and zero it.
Set the tension dial to about halfway, insert the string into the tension head and pull tension.
When the machine reaches tension, count to three and read the calibrator. The reading keeps dropping after that because the string stretches; the machine is still holding its set tension.
Set the tension sticker on the dial to the reading you took at three seconds, then pull once more to confirm.

Configuration	ModuleX-2	ModuleX-6
Support points	2	6
Frame support	Main racquet bars and head support.	Adds throat and head cross bars.
Best suited to	Players who prioritise a compact setup.	Players looking for support at both ends of the frame.
